Detailed Introduction

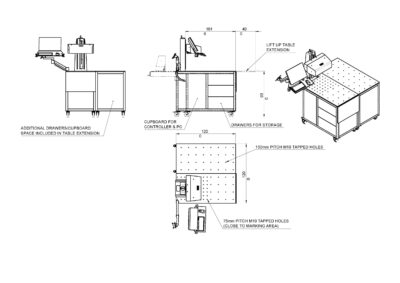

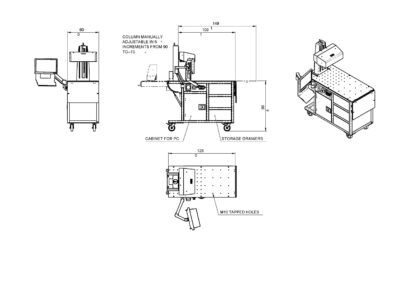

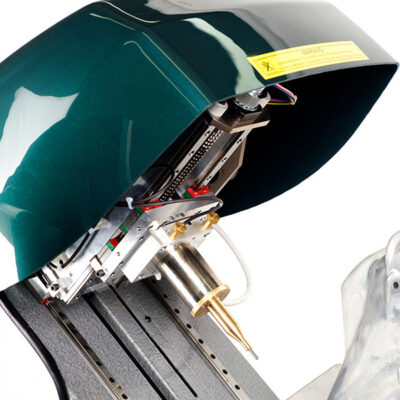

The Mobile Marking station uses a BenchDot marking head mounted onto a tilting column for ultimate portability and flexibility, it is ideal for low volume, high variety components. The marking head can be tilted from -10 degrees to +90 degrees meaning that marking on an angled surface is simple and straightforward. The table top is covered with a thick, industrial, non-slip surface to protect the cart and ensure the part does not move during the marking cycle. The top is drilled with M10 tapped holes at 75mm pitch for easy fixture attachment.
Programmed using the 4000 Controller orPryor’s PC based Traceability Software
Available in 2 different marking window sizes
Option to upgrade to an Electric Z Axis with Autosense (EZA) for increased quality control and operator ease
Marking at pre-set, repeatable angles with autosense feature to accurately detect and repeat marking gap / force
Flexible and quick change of fixtures for high variety of components being marked
Mobile marking cart for use around shop floor, preventing movement of larger or critical components
Standard table size – 1.4m x 0.6m
Extension table available to increase table size to 1.4m x 1.2m
The Mobile Marking station uses a BenchDot marking head mounted onto a tilting column for ultimate portability and flexibility, it is ideal for low volume, high variety components.
SKU: N/ACategories: BenchDot, Dot Peen Marking Machines, Floor Standing
