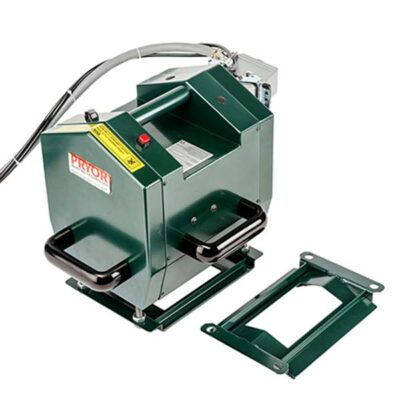

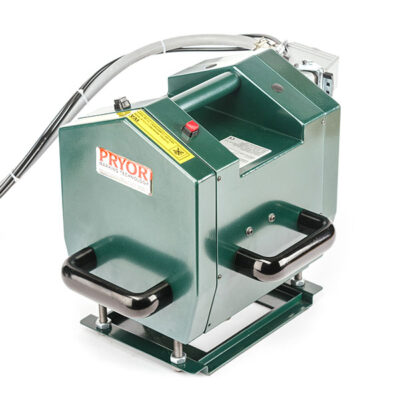

Heavy weight model to reduce movement during marking process
Marking Area: 100mm x 75mm
Comes with Pryor’s 4000 Series Controller as standard
Fully compatible with Pryor’s PC based Traceability Software
Standard electric version with the option of a pneumatic upgrade if a very deep mark is required
Option to purchase an electromagnetic clamp to further reduce the possibility of movement during the marking process
Large handles on two sides for stability when marking in both directions
Standard Character Sizes: 0.18mm – 99.9mm in 0.18mm increments
Marking Machine Dimensions: W: 329mm H: 307mm D: 267mm
Series 4000 Controller dimensions: 375mm x 335mm x 132 mm
Weight: Head 10.7kg | Cable 1kg | Series 4000 Controller 5kg
Construction: Aluminium internals and cover
Workpiece hardness: Max. 62 HRC (800HV)
Operating temperature: 0ºC – 80ºC (32ºF – 176ºF)
Drive Mechanism: lead screw
Cable length: 5m standard
Power supply: AC Input 50/60Hz; 100-240VAC
Optional battery powered controller: 36V Li-Ion 3.0Ah/108Wh battery
Marking type: 5×7, 7×9, Varidot, HPGL, BMP Logos, True Type Fonts, Data Matrix
Connectivity Options: 1 x RS232, 1 x USB (that has the option of being removed to create 2 x RS232) and digital I/O (8 in 6 out) connectivity. Optional Ethernet TCP/IP and optional Field Bus.
Dot Mark output styles: 5 x 7,7 x 9,Varidot, 2D Data Matrix, HPGL, BMP Logos
Controller Memory Capacity: Up to 9000 layouts
Controller features an industrial 10.4 inch touchscreen with additional option of connecting an external keyboards.
On screen mark preview and trial run features
Head cable industrial steel connector to easily disconnect the marking head when needed
Pneumatic Air Supply requirements: Power 6 bar (87psi) non-lubricated, dry. (Deep Pneumatic version ONLY)
