Marking Area: 100mm x 75mm
Standard Character Sizes: 0.18mm – 9.99mm in increments of 0.18mm
Marking Formats: 5 x 7, 7 x 9, Varidot and the USB version also offers all windows True Type fonts*, DXF, HPGL
Variable Marking Speed
Memory Capacity: 4000 controller = upto 4000 layouts, USB = Unlimited

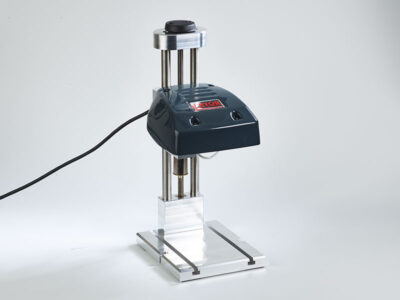

Marking Machine weight: 13kg
Controller Weight (4000 controller): 6.5kg
Controller features an industrial 10.4 inch touchscreen with additional option of connecting an external keyboards.
The 4000 controller provides connectivity options through RS232 serial and digital I/O ports
USB version PC requirements: 1GHz Pentium or equivalent with USB port
USB version compatible operating systems: Windows 7, Windows 8 and Windows 10
The marking machine is powered by a standard 220 volt electric source (110 volt also available)
Machine dimensions: Height = 570mm, Width – 250mm, Depth = 295mm
Controller Dimensions (LCD): Height = 300, Width = 200, Depth = 280mm
Maximum of 15 characters for 2D barcodes
