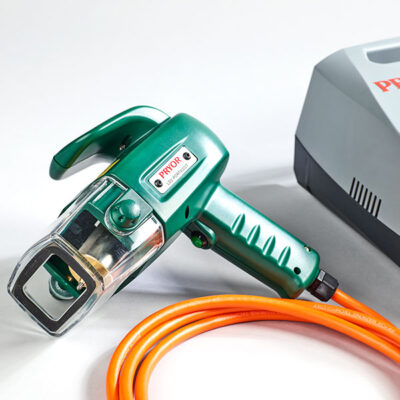

Portable, Lightweight Dot Peen Marking Machine
50mm x 25mm marking window

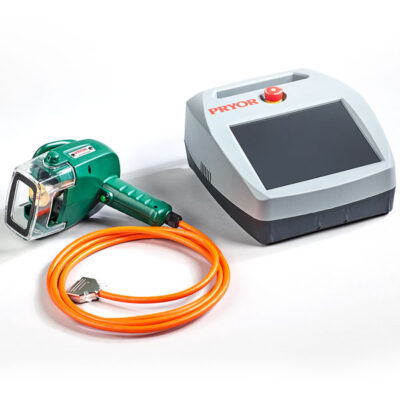

Comes with Pryor’s 4000 Series Controller as standard
Fully compatible with Pryor’s PC based Traceability Software
Suitable for engraving identification marks, logo or 2D barcode information
Can permanently mark most engineering materials up to a maximum hardness of 62Hrc
Standard Character Sizes: 0.19mm – 49.9mm in increments of 0.19mm (5×7 font) or 0.25mm (7×9 font)
Dimensions: 245mm(H) x 176mm (W) x 214mm (L)
Weight: Marking head/cable: 2.3kg
Drive Mechanism: lead screw
Cable length: 3m standard (6m or 10m optional)
Dot Mark output styles: 5 x 7,7 x 9,Varidot, 2D Data Matrix, HPGL, BMP Logos
Controller connectivity options: 1 x RS232, 1 x USB (that has the option of being removed to create 2 x RS232) and digital I/O (8 in 6 out) connectivity. Optional Ethernet TCP/IP and optional Field Bus
Controller memory capacity: up to 9000 layouts
Controller features industrial grade 10.4 inch touchscreen with additional option of connecting an external keyboard
On screen mark preview and trial run features
Controller dimensions: 375mm x 335mm x 132 mm
Controller weight: 6.5kg
Power supply: AC Input 50/60Hz; 100-240VAC
Optional battery powered controller: 36V Li-Ion 3.0Ah/108Wh battery
