Product Features

The Laser Workstation uses a fibre laser to engrave a permanent, high-contrast mark directly onto a component or label. Fibre laser technology is known for exceptional reliability, with diode life exceeding 50,000 hours, providing maintenance free marking and no consumable costs. Fibre lasers consume less than 200watts of power, making these lasers the most efficient on the market.

As a non-contact marking technology, components do not need to be clamped, ensuring set up and operation is fast and safe. Non-contact also means the marking process does not create stress points or deform the material.

The enclosure is modular, allowing the size of the cabinet to be scalable and has several possible upgrade additions for increased flexibility and functionality

Three standard Workstation sizes (width x depth)

o 1.0m x 0.5m

o 1.5m x 0.5m

o 2.0m x 0.5m

Class 1 laser safe enclosure, completely interlocked for operator safety
Floor standing machine, with an ergonomic working height
20W Fibre laser as standard, but higher power units available
Pryor embedded laser controller

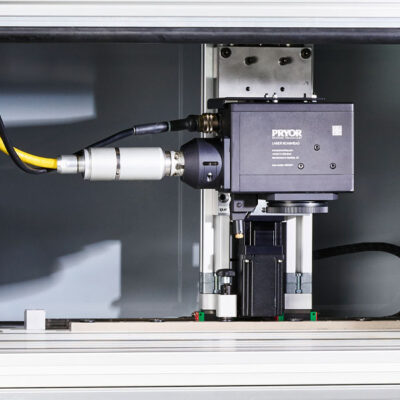

Pryor laser scan-head mounted on a digital z axis with 400mm of z axis movement
FT150 lens (100mm x 100mm marking area) as standard

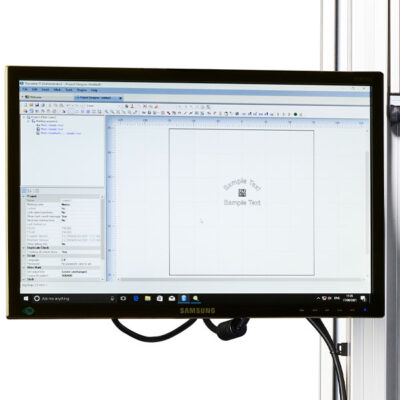

Integrated PC with mounted keyboard, mouse and monitor
Traceability Software included
Aluminium extruded, slotted base for easy location and mounting of fixtures and jigs

Detailed Introduction

The Pryor Laser Workstation is a large, modular floor-standing laser engraving machine. The workstation is a Class 1 laser safe enclosure available in three sizes with manual or automated front access doors for component loading. Pryor offers two models of pulsed fibre laser, 20 watts, or 50 watts, to meet different marking requirements.

Large and robust light-safe workstation
Enclosure is quick and easy to access and operate

Reliable, maintenance free with very low running costs
Direct marking of large or multiple components
Non-contact, fixtureless marking
Permanent, high-contrast marking
Fast, easy to use and versatile
Supplied with our windows-based Traceability Software

SKU: N/ACategories: Floor Standing, Laser Marking & Engraving Machines

Technical parameter

Pryor Fibre Laser Specification

Pryor offers two models of pulsed fibre laser

YF20: 20W (Available in 3 vaieants, Eco, Standard and Pro)

YF50: 50W

Our 20W Laser has proven to be a reliable and high-quality solution for a variety of marking applications. It offers a wide frequency range (20kHz to 200kHz), capable of producing high contrast surface marking on a wide range of materials.

The laser is suited to high volume, high variety output and issupplied with a two-year product warranty on both the cabinet and integrated system.

Fibre Laser Features

Exceptional reliability, Fit and forget performance with diode life exceeding 50,000 hrs
Maintenance free marking with no consumable costs
High quality marking on a wide range of materials including metals / alloys and plastics
Low running costs, fibre lasers consume less than 200watts of power, making these lasers the most efficient on the market (1.06-micron wavelength)
Wide operating temperatures between 0 and 42°C
Industry leading Traceability Software
Available in a range of class 1 enclosures

Also available as an integration package. The compact size and robust construction make the YF lasers the perfect solution for automated part marking tasks.

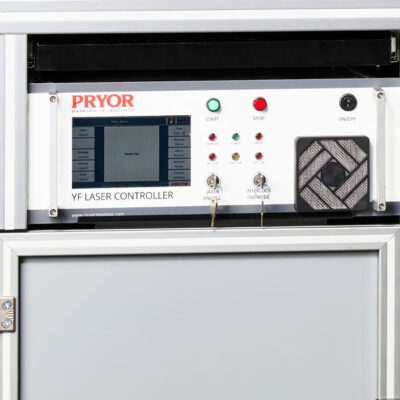

Intelligent laser controller can operate in a basic standalone mode or using the built-in USB connection it can connect to a PC for advanced operation using the Pryor Traceability software.

Visible ‘Pilot’ beam shows the marking location for fast, accurate setup.

Secondary (converging) ‘focus finder’ visible beam shows when the laser is focused.

Robust, easy to use control panel features high quality start/stop/focus finder push buttons with built in emergency stop and key-switch safety interlock control.
