Product Features

3 Marking Window sizes

100mm x 100mm
150mm x 150mm
300mm x 150mm

Comes with 4000 Series Controller as standard
Fully compatible with Pryor’s PC based Traceability Software
Standard marking window sizes: 100 x 100mm, 150 x 150mm, 300 x 150mm
Dimensions: W: 400mm, H: 790mm, D: 433mm
Machine weight – minimum 40kg (approx. depending on machine size)
X,Y axis control – Steppermotor driven
Z axis control – manual adjustment as standard, stepper motor version optional (EZ Upgrade)
Air supply – 6 bar (87psi) non-lubricated, dry

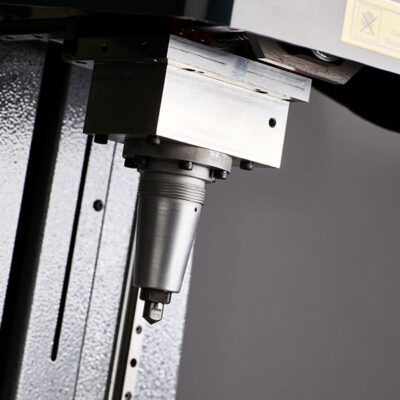

Diamond-tipped or tungsten carbide stylus 110°
Controller connectivity options: 1 x RS232, 1 x USB (that has the option of being removed to create 2 x RS232) and digital I/O (8 in 6 out) connectivity. Optional Ethernet TCP/IP and optional Field Bus
Controller memory capacity: up to 9000 layouts
Controller features industrial grade 10.4 inch touchscreen with additional option of connecting an external keyboard
On screen mark preview and trial run features
Controller dimensions: 375mm x 335mm x 132 mm
Controller weight: 6.5kg
Power supply: AC Input 50/60Hz; 100-240VAC

Detailed Introduction

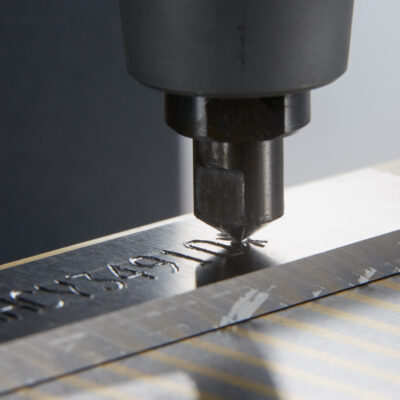

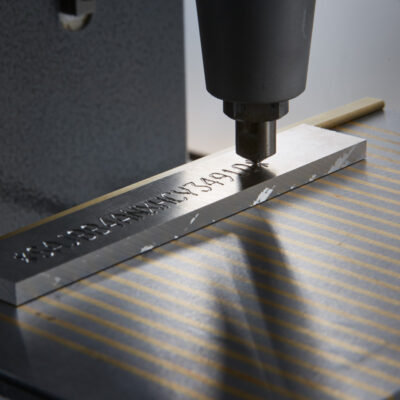

The Pryor BenchScribe machine engraves a continuous line inscription onto flat surfaces and parts with large diameters. This bench mounted version is ideal for marking low to medium volumes in a workshop environment. The excellent quality continuous line is the preferred method when marking fine characters as it creates the greatest legibility and is often used for VIN marking in the automotive industry.

Programmed using the 4000 Controller or Pryor’s PC based Traceability Software

Available in 3 different marking window sizes
Light Scribe (Diamond tipped stylus) & Medium Scribe (Carbide tipped stylus) options depending on your application
